Calibration is a first-class metric
NEES exposed overconfidence in filters that appeared acceptable on point error alone.
Quantitative Inference Portfolio
State Estimation Under Nonlinearity and Dimensional Scaling
A controlled benchmark of Kalman, particle, and deterministic flow filters evaluated on calibration, stability, and computational cost.
- Designed and benchmarked 6 Bayesian state estimators (KF to Particle Flow).
- Evaluated statistical consistency using NEES, not just RMSE.
- Analyzed accuracy-runtime-memory trade-offs under nonlinear and high-dimensional stress.
Key Insights
Numerical stabilization has boundaries
Joseph-form covariance updates improved robustness but did not eliminate nonlinear divergence mechanisms.
Deterministic flow proposals shift trade-offs
Flow-based proposals improved robustness in hard regimes with measurable runtime overhead.
Scaling governs deployability
High-dimensional behavior determined practical feasibility more than single-scenario leaderboard performance.
Benchmark Results
The table combines accuracy, calibration, and systems costs. RMSE alone is not sufficient for decision-critical inference.
| Method | RMSE | NEES (target ~ 1) | Runtime (s) | Memory (MB) | Verdict |
|---|---|---|---|---|---|
| EKF | 1.660 | 40.034 | 0.990 | 450.5 | Fast but severely miscalibrated in nonlinear settings. |
| UKF | 1.316 | 6.398 | 1.032 | 452.8 | Better than EKF, still overconfident under stress. |
| Bootstrap PF | 0.906 | 1.253 | 1.912 | 494.0 | Best calibrated among NEES-logged methods with strong accuracy. |
| PF-PF (LEDH) | 2.492 | n/a | 10.857 | n/a | Stable proposals, high runtime cost in current configuration. |
| LEDH | 3.543 | n/a | 5.197 | n/a | Deterministic flow behavior with moderate compute overhead. |
| Kernel-PFF (matrix) | 3.322 | n/a | 14.642 | n/a | High-dimensional robustness signal, but expensive in runtime. |
Interpretation: Bootstrap PF gave the strongest combined signal on accuracy and calibration where NEES was logged, while deterministic flows showed useful stress robustness at significantly higher compute cost. For downstream decision systems, calibration quality is as important as error magnitude.
NEES Emphasis
NEES = (x - x̂)T P-1 (x - x̂)
A filter with low RMSE but inflated NEES is statistically overconfident and unsafe for downstream decision-making.

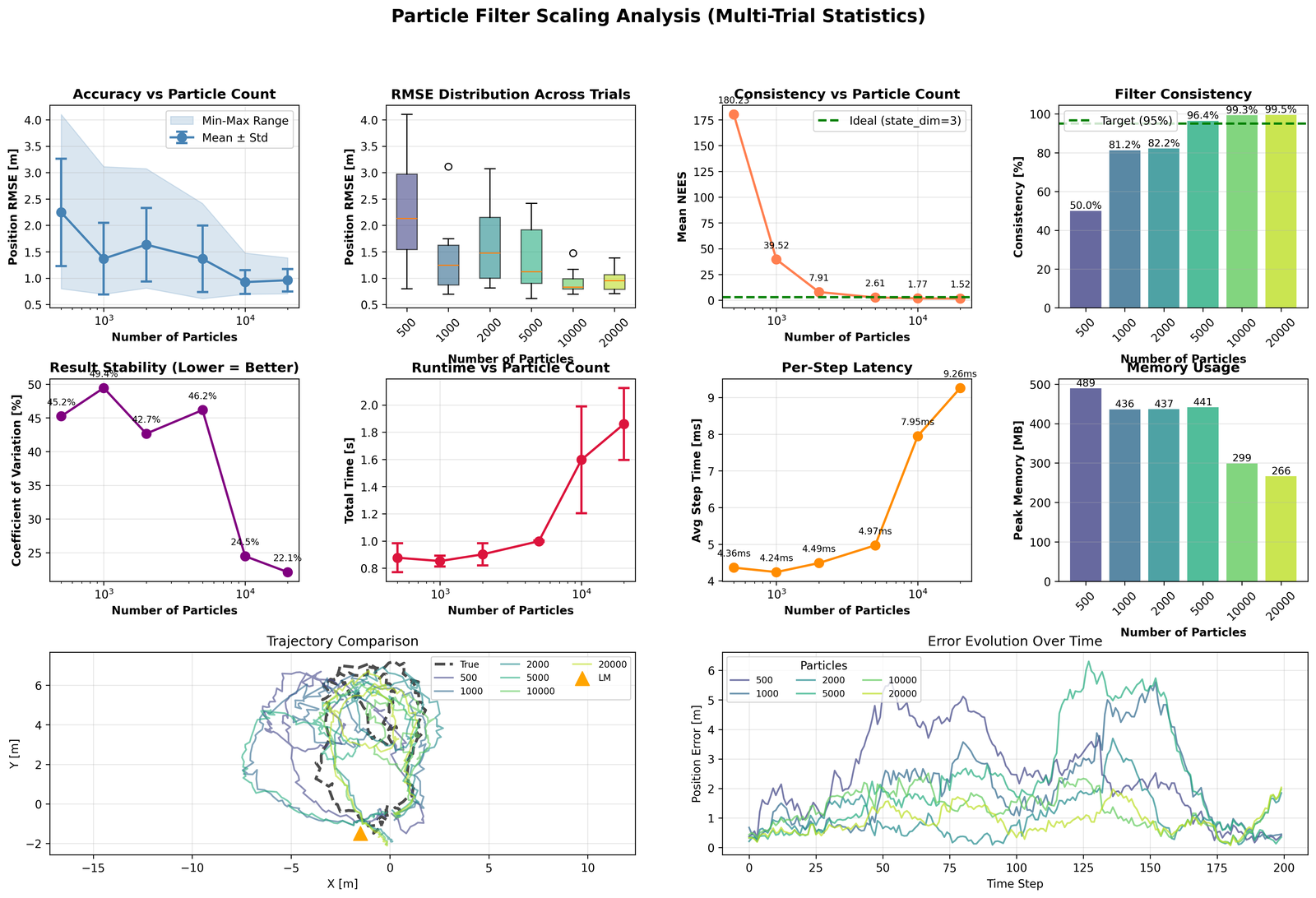

Scaling Study
As dimensionality increases, method choice is governed by an accuracy-efficiency frontier, not a single scalar metric.
Computational Awareness
| Method | Time Complexity (approx.) | Memory Complexity (approx.) |
|---|---|---|
| KF / EKF / UKF | O(d^3) | O(d^2) |
| Bootstrap PF | O(Nd) | O(Nd) |
| PF-PF / LEDH | O(Nd^2) | O(Nd) |
| Kernel-PFF (matrix) | O(N^2d) | O(N^2) |
Runtime and memory were explicitly profiled per method in the benchmark pipeline.
Experimental Design
Design Philosophy
This benchmark isolates three axes:
- Linearity vs nonlinearity
- Gaussian vs non-Gaussian uncertainty
- Dimensional scaling behavior
Each experiment evaluates:
- Point accuracy
- Covariance calibration
- Numerical stability
- Computational complexity
Progressive Stress Framework

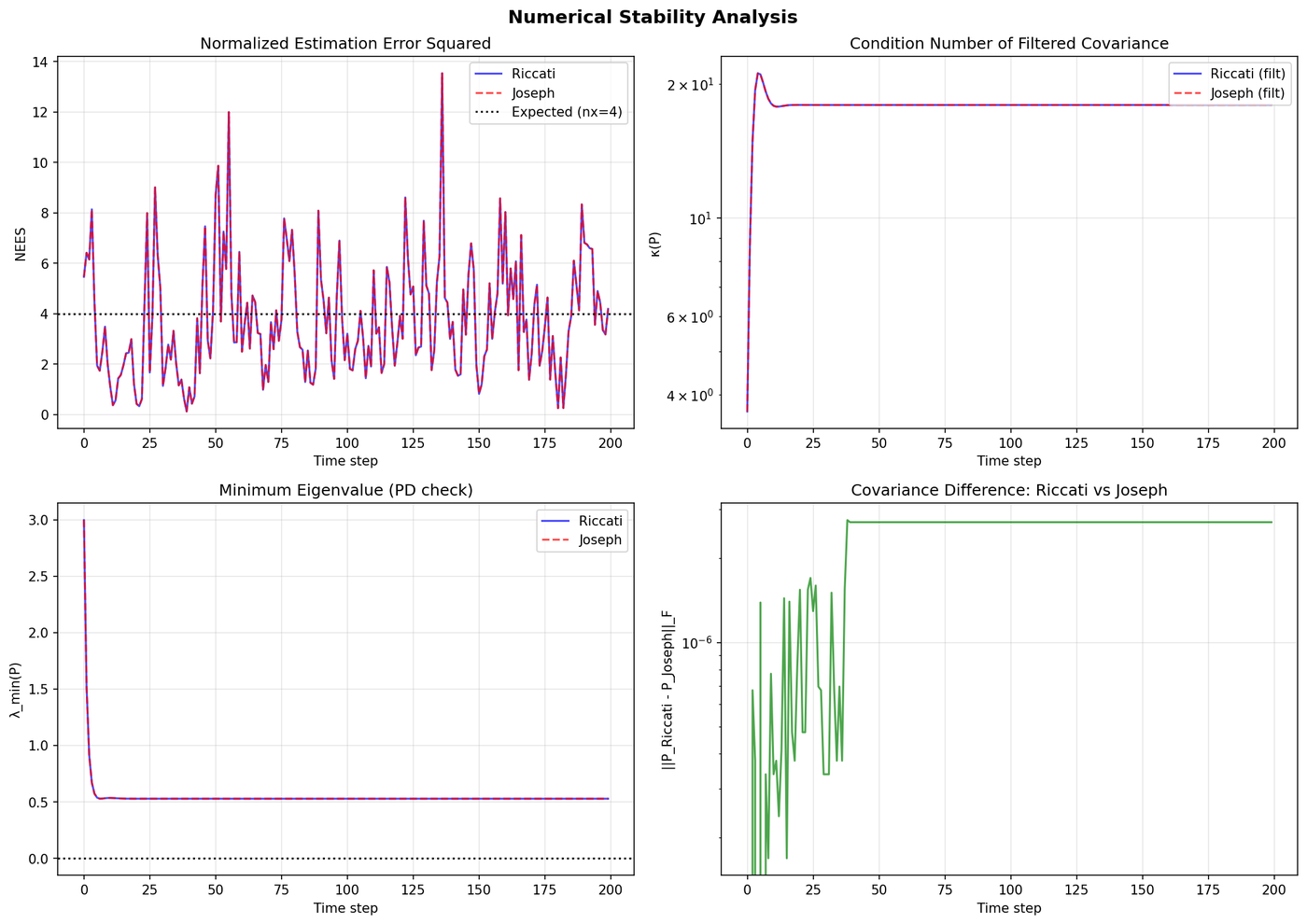

Act 1: Linear-Gaussian Baseline
KF stability and covariance update behavior under controlled assumptions.

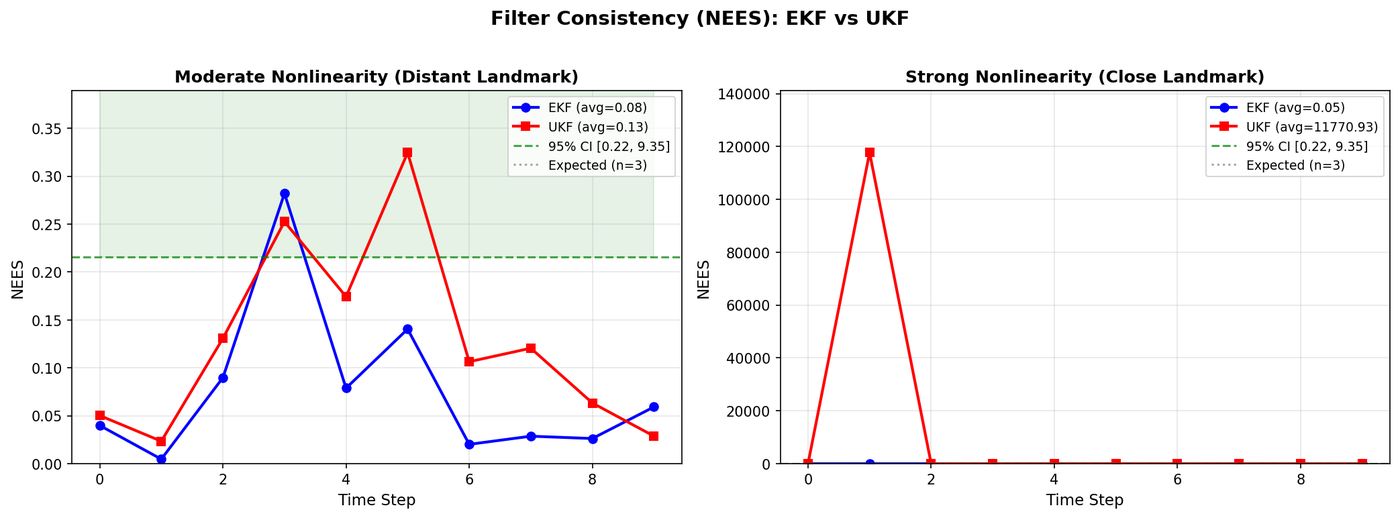

Act 2: Nonlinear Stress
Approximate Gaussian filters tested under range-bearing nonlinearity and calibration pressure.

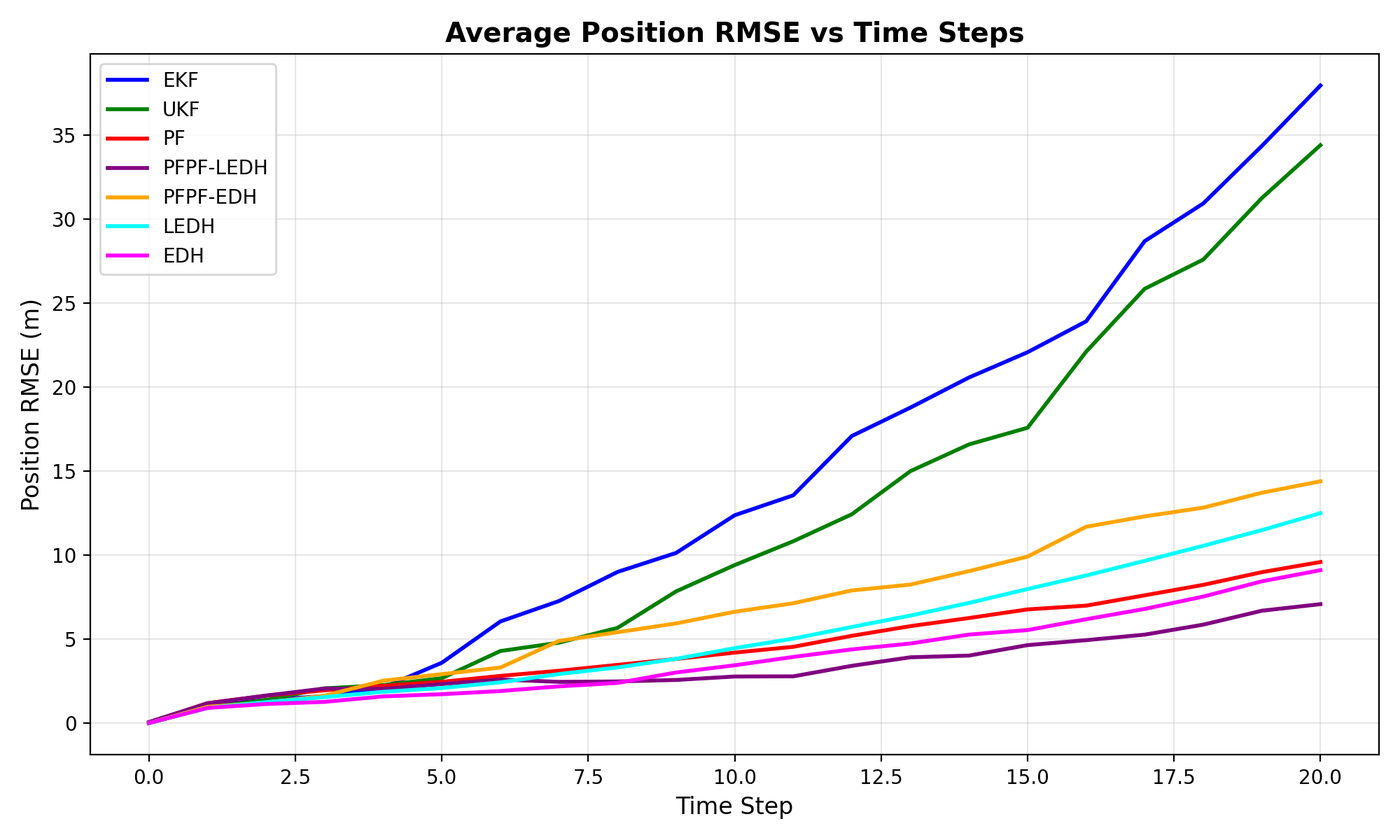

Act 3: Deterministic Flow Proposals
PF-PF and flow-based methods evaluated under stronger degeneracy and transport constraints.
Failure Modes
EKF divergence under strong nonlinearity
First-order linearization produced unstable covariance behavior and inflated NEES when measurement geometry became strongly nonlinear.
Particle degeneracy when N is insufficient
Weight collapse reduced effective sample size and increased variance in posterior approximation under sparse or hard observations.
Runtime overhead in deterministic flows
EDH/LEDH and kernelized transport improved certain stress cases but incurred substantial runtime overhead relative to KF/PF baselines.
Overconfidence detected by NEES
Calibration failure occurred even when point-error metrics appeared acceptable, reinforcing NEES as a non-optional diagnostic.
Reproducibility
No new experiments were added in this portfolio redesign. The page uses existing outputs from the benchmark repository.
python -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
bash scripts/run_part1.shSource repository: github.com/meamresh/MLCOE_Q2_PF
Relevance to Quantitative Research
State-space reasoning
Filtering maps naturally to latent-state inference, where hidden factors evolve sequentially under uncertainty.
Real-time inference discipline
The benchmark emphasizes online updates, calibration quality, and failure awareness rather than static offline fit.
Calibration as control signal
NEES provides a direct signal for uncertainty reliability, critical when downstream policies consume posterior covariance.
High-dimensional systems perspective
Scaling diagnostics connect algorithmic complexity to practical deployment constraints in large latent-state systems.
